Surgical navigation teams rarely buy a camera as a stand-alone part; they buy a tracking component that has to fit a stack that already exists. This guide is written for OEM buyers, product managers and clinical engineering teams who are comparing an optical positioning camera manufacturer for image-guided surgery and robotic platforms. It walks through the vendor questions worth asking first, the trade-off between the higher-precision M631 and the higher-frequency M632, the full published specification set, and the integration details your engineers will want before they commit. If you are also benchmarking a second optical tracking camera supplier, run the same checklist and the same table again so every candidate is judged on identical terms.
Every question below can be answered from a datasheet, a test record or a direct written reply. Ask the same ten of each candidate and place the answers side by side — the shortlist usually sorts itself out.
Ask whether optical design, calibration and assembly sit in-house or with a third party. A tracking camera is an optics problem first, and calibration ownership decides how quickly issues get resolved.
Mixed instrument sets are common. The AimPosition specification states support for both passive and active markers, so confirm your own instrument set is covered on paper.
The published behaviour here is software auto-recognition, which means a changed tool does not need a manual re-registration step. Verify the same is true in your own navigation software.
Ask for the unit and the method. The published AimPosition range is 0.08–0.2 mm stated as RMS — a figure you can compare against a competitor only when both use the same basis.
The series is published at 96 Hz and 300 Hz across its two versions. Confirm which tier your navigation loop actually needs before paying for the higher one.
Published options are USB3.0 (compatible with USB2.0), Ethernet and WiFi. Match the interface to your host before anything else — it is the least negotiable line on the sheet.
Adapter and network-port power supply (POE) are both documented. Decide which your installation supports, then check the AC 100–240 V input and DC 12.0 V 2.0 A output against your rack.
The published maximum is 50 tools and up to 200 markers. Size against your busiest procedure, not your average one, and leave headroom for future instruments.
Lead time, branding options, spare parts, software updates and support response times are rarely on a datasheet. Raise them at quotation stage and ask for the answers in writing.
Ask each vendor to document its own regulatory status — for example ISO 13485, CE or FDA clearance — for your target market. Treat certification as something to verify per supplier, never something to assume.
AimPosition is published in two versions. Both share the same housing, interfaces, marker support and tool capacity, so the choice is almost entirely about whether your workflow is limited by accuracy or by sampling speed.
Every figure below is taken from the published AimPosition specification for the standard version. Use the version rows to choose a model, then work down the parameter rows to check the rest of your integration requirements.
| Parameter | Published specification |
|---|---|
| Technical parameters | |
| Positioning accuracy | 0.08–0.2 mm (RMS) |
| Sampling frequency | 96–300 Hz |
| Field of view range | Pyramid range 1M ~ 2.4M |
| Operating temperature | +5 °C ~ +40 °C |
| Data communication | |
| Data interface (optional) | USB3.0 (compatible with USB2.0), Ethernet, WiFi |
| Maximum data transfer rate | USB3.0: 5.0 Gbps; Ethernet: 1000 Mbps; WiFi: 460.8 Kbps |
| Data type | NIR images, marker 3D coordinates, tool 6D position, color images |
| Marker type | Passive / active |
| Maximum number of tools | 50 pcs (maximum 200 pcs markers) |
| Tool modification | Software auto-recognition |
| Power supply | |
| Method | Support adaptor and network port power supply (POE) |
| Input | AC 100–240 V, 0.8 A max |
| Output | DC 12.0 V, 2.0 A |
| Physical parameters | |
| Dimension | L 608.5 mm × W 122.5 mm × H 108.5 mm |
| Housing material | Metal |
| Net weight | 2.5 ± 0.1 kg |
| Version specifications | |
| Higher precision | M631 — 0.08 mm / 96 Hz |
| Higher frequency | M632 — 0.12 mm / 300 Hz |
Before requesting a quote, confirm which side of each interface your team owns. The camera side of the connection is published; the host side is yours to define.
The published application list covers neurosurgery, orthopedics, TMS and dental implant procedures. For each one, the decision is the same type you would make for any tracking camera: fix the limiting factor first, then choose the version that satisfies it.
Decision: when tiny positional error dominates your registration accuracy, open the evaluation with the 0.08 mm M631 — then confirm the refresh rate your navigation software consumes before you lock the choice.
Decision: continuous bone-motion tracking rewards sample rate, so evaluate the 300 Hz M632 first and then check whether the wider 0.12 mm figure still sits inside your tolerance.
Decision: mixed instrument sets favour that marker flexibility. Confirm which marker type your positioning hardware uses, and whether your equipment can be re-marked, before you specify a version.
Decision: check that your working volume sits inside that pyramid at the distances your procedure uses, and agree the mounting position that delivers the coverage before installation day.
Keep adjacent product options together for a faster catalog comparison.

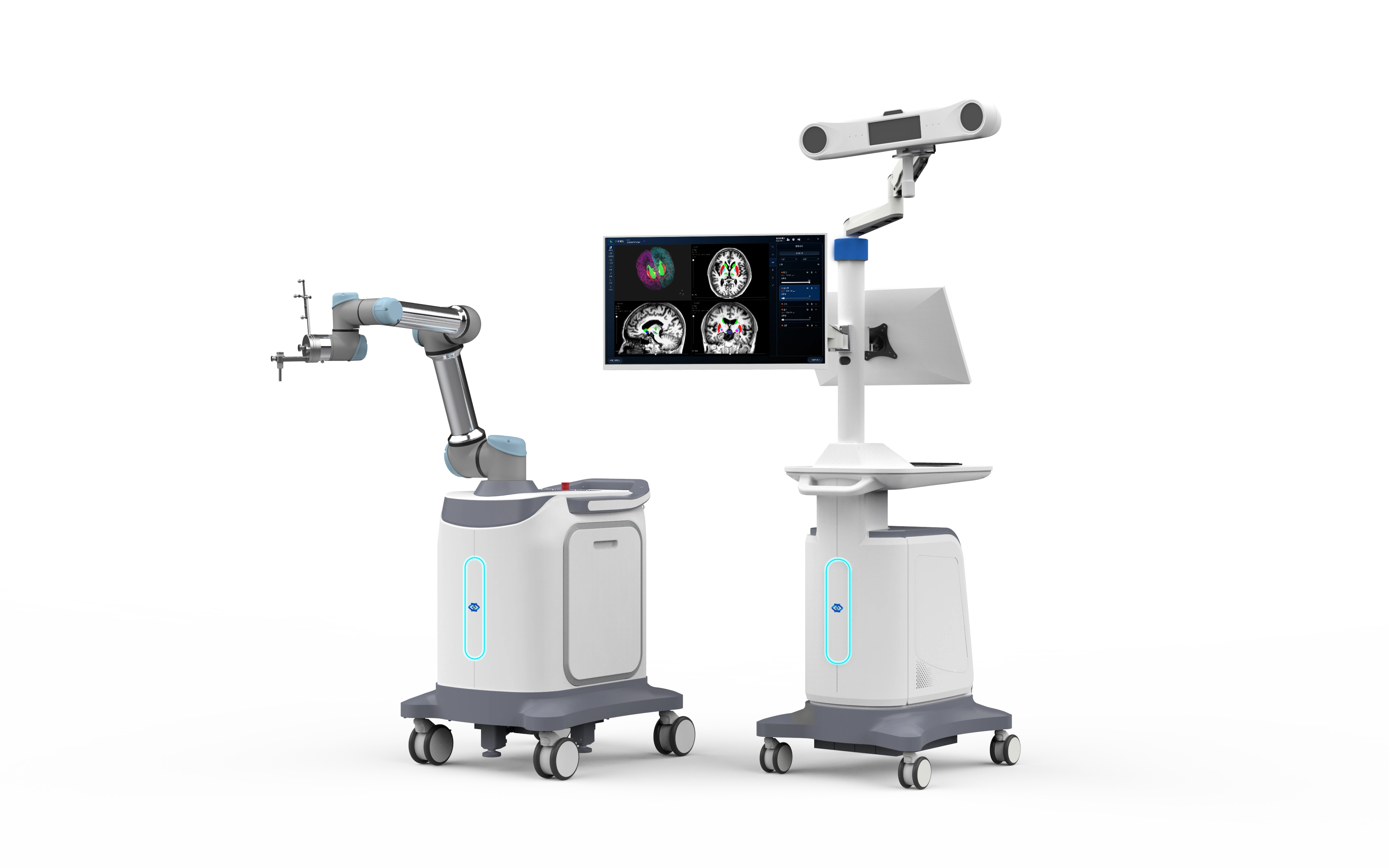

AIMOOE’s neurosurgery navigation system integrates AI-driven 3D imaging, real-time tracking, and robotic control, enhancing precision in brain biopsies and minimally invasive procedures.
View product

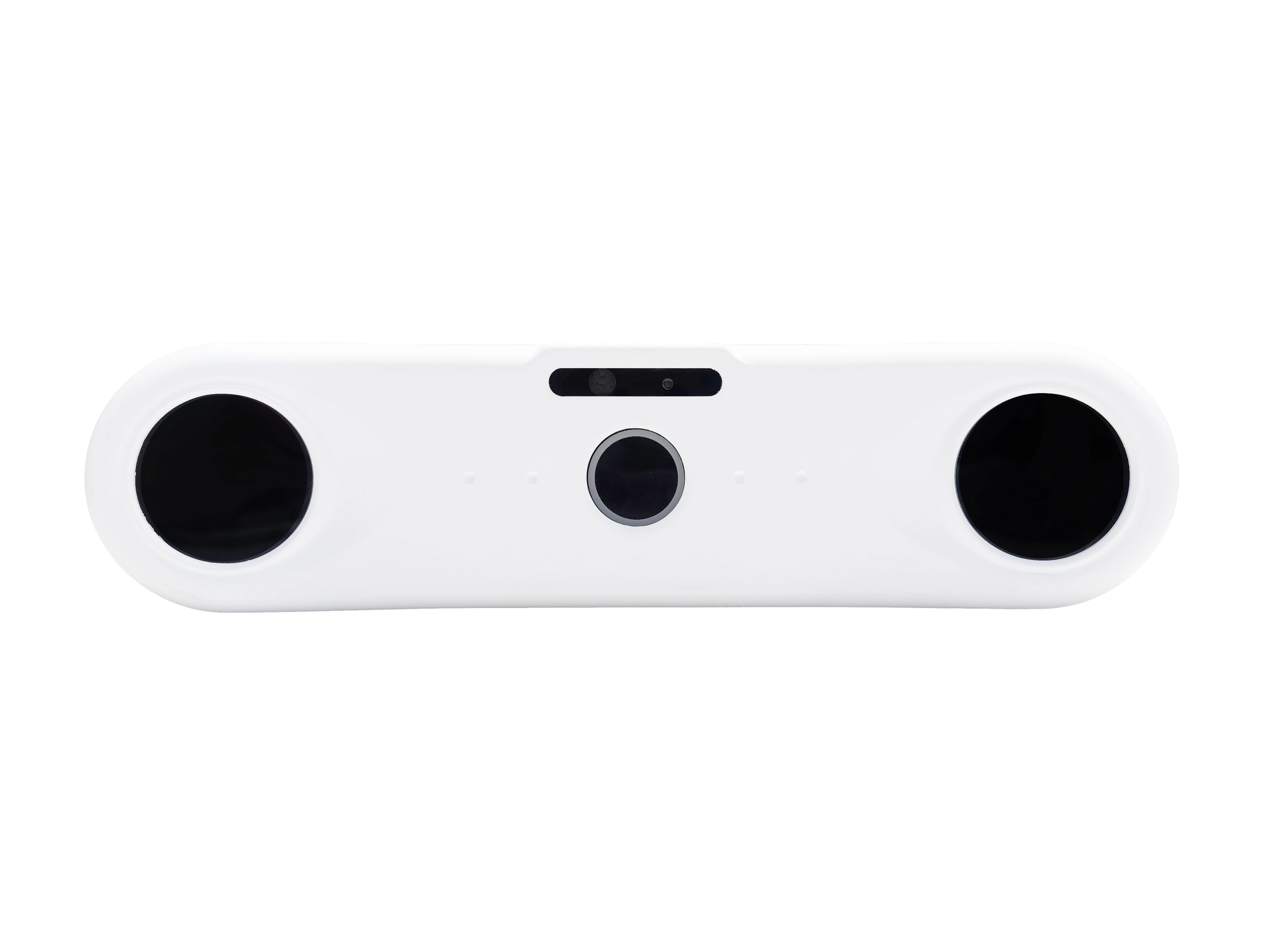

AIMOOE's optical positioning camera provides precise tracking for robotic surgeries, supporting USB, Ethernet, and WiFi integration. Ideal for neurosurgery and orthopedics.
View product
AIMOOE's MagPilot system offers high-precision tracking with real-time electromagnetic technology, ideal for robotic surgery and industrial applications.

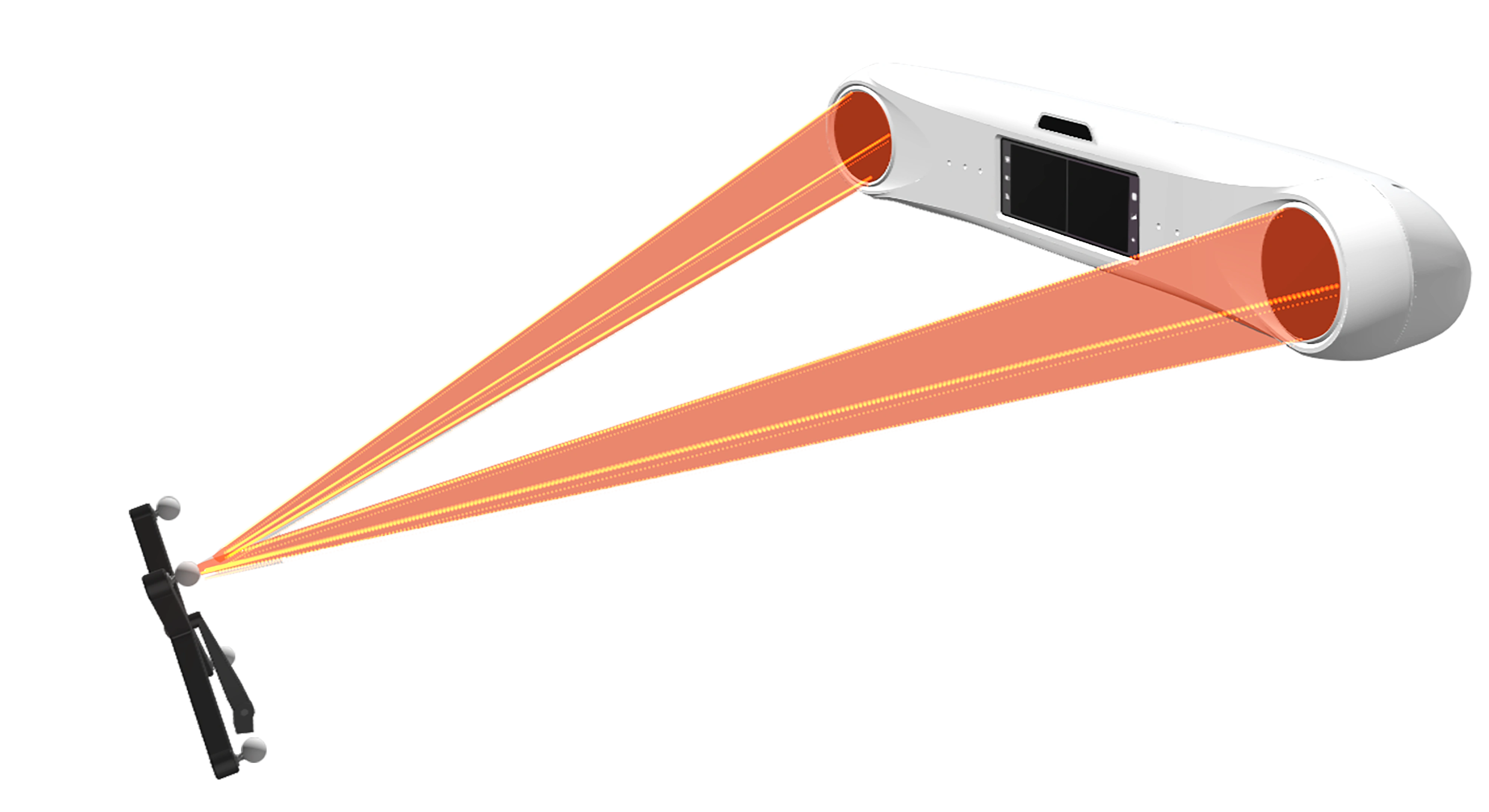

View productit is described as an optical tracking system for image-guided surgery that can be integrated into surgical robots. it uses near-infrared light to detect reflective markers attached to surgical instruments and triangulation to convert each marker position into 3d (x, y, z) coordinates for real-time tool tracking.
m631 is the higher-precision version at 0.08 mm and 96 hz. m632 is the higher-frequency version at 0.12 mm and 300 hz. both sit inside the published series range of 0.08–0.2 mm (rms) accuracy and 96–300 hz sampling.
both passive and active markers are supported. the published maximum is 50 tools and up to 200 markers, and tool modification is handled by software auto-recognition rather than a manual step.
published data types are nir images, marker 3d coordinates, tool 6d position and color images. interface options are usb3.0 (compatible with usb2.0), ethernet and wifi, with maximum transfer rates of 5.0 gbps, 1000 mbps and 460.8 kbps respectively.
it supports adaptor and network-port power supply (poe), with an ac 100–240 v, 0.8 a max input and a dc 12.0 v, 2.0 a output. the published operating temperature range is +5 °c to +40 °c, and the metal housing measures 608.5 × 122.5 × 108.5 mm at 2.5 ± 0.1 kg.
use the quote request or contact path linked from the product page and the contact page. lead time, minimum order quantity, warranty, shipping and the regulatory documentation your market requires should all be confirmed in writing during the quotation stage.
