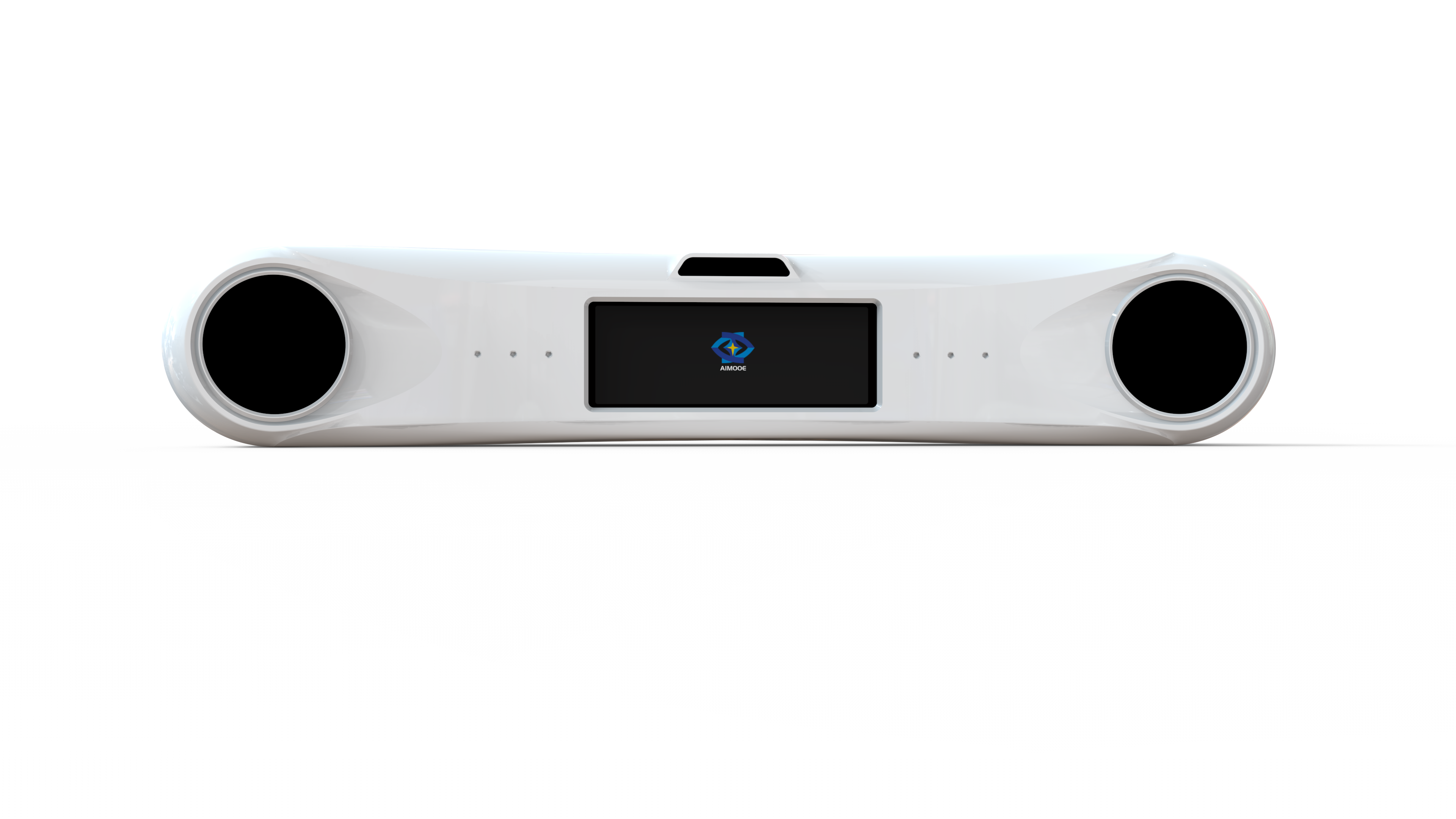

AimPosition Series
OP-M631 / OP-M632
Higher Precision Up to 0.08mm (RMS)
Precise | Real-time | Reliable

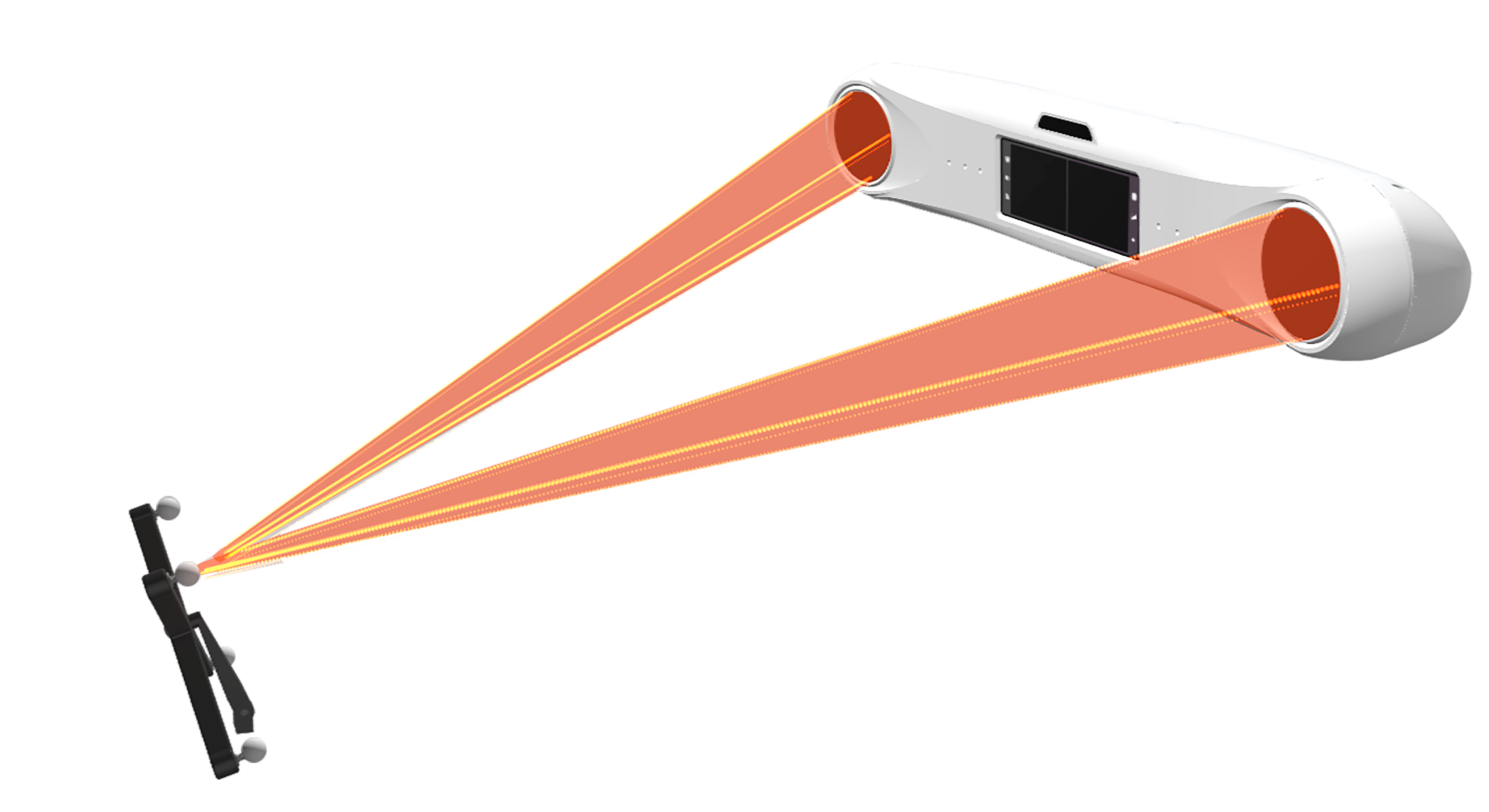

It utilizes near-infrared light to wirelessly detect and track reflective markers attached to surgical instruments.
Through triangulation, the camera calculates the exact position of each marker and translates it into 3D (X, Y, Z) coordinates.
When integrated into the surgical navigation workflow, the optical camera delivers accurate, real-time data for precise tool tracking and positioning, ensuring enhanced reliability throughout the surgical procedure.
Technical Parameters
|
Performance
|
|
Positioning accuracy
|
0.08-0.2mm（RMS）
|
|
Sampling frequency
|
96-300Hz
|
|
Field of view range Pyramid range
|
1M~2.4M
|
|
Operating temperature
|
+5℃ ~ +40℃
|
|
Data Communication
|
|

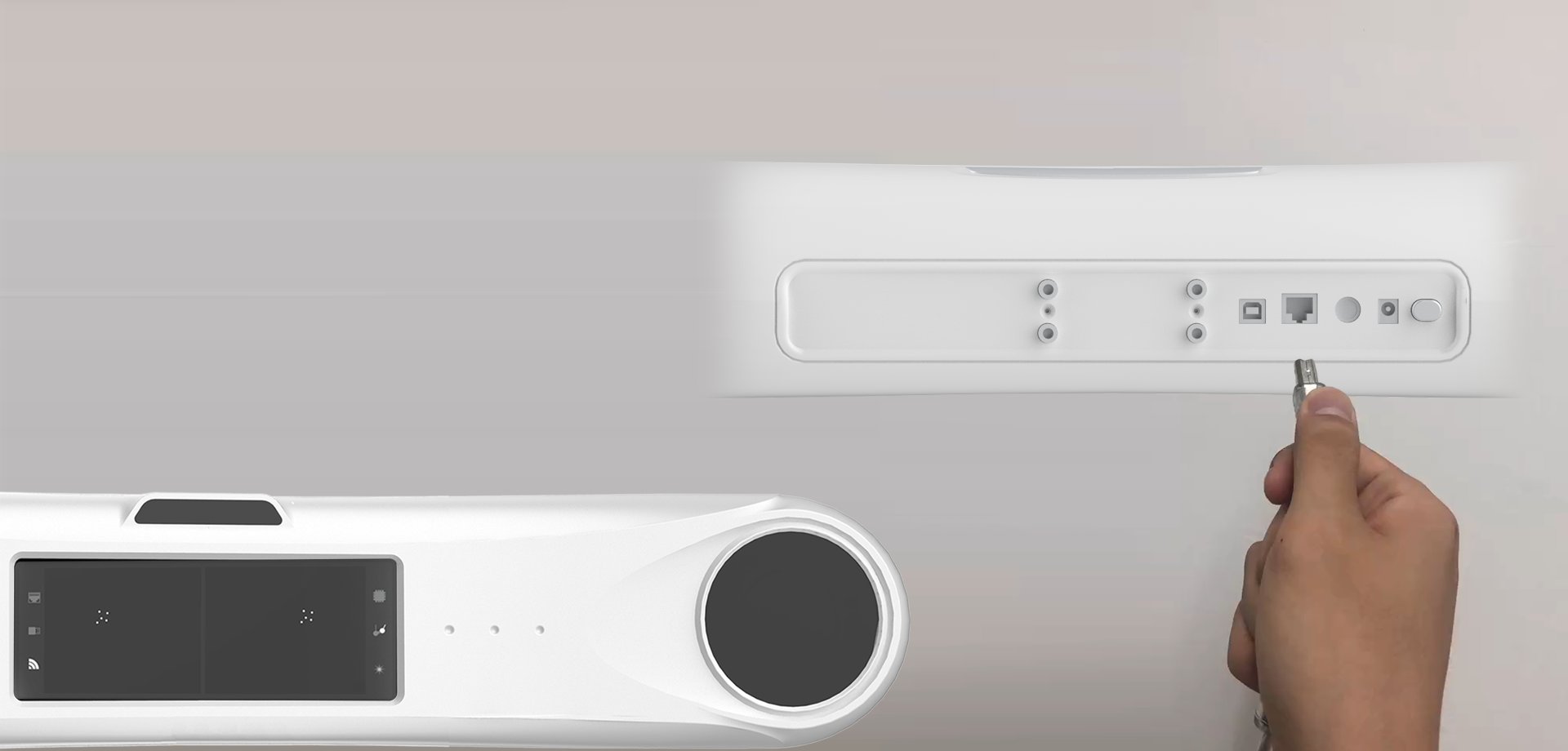

Data interface (optional)
|
USB3.0 (Compatible with USB2.0), Ethernet, WiFi
|
|
Maximum data transfer rate
|
USB3.0: 5.0Gbps
Ethernet: 1000Mbps
WiFi: 460.8Kbps
|
|
Data Type
|
NIR images, marker 3D coordinates, tool 6D position, color images
|
|
Reflective Marker/Tool
|
|
Marker type
|
Passive/Active
|
|
Maximum number of tools
|
50 pcs (Maximum 200pcs markers)
|
|
Tool modification
|
Software auto-recognition
|
|
Power supply
|
|
Method
|
Support adaptor and network port power supply(POE)
|
|
Input/Output
|
Input: AC 100-240V 0.8A Max
Output: DC 12.0V 2.0A
|
|
Physical Parameters
|
|
Dimension
|
L608.5mm*W122.5mm *H108.5mm
|
|
Housing Material
|
Metal
|
|
Net Weight(N.W.)
|
2.5±0.1KG
|
Field Of View - Pyramid Volume
Product Detailed DescriptionUnmatched Precision with Advanced 3D TrackingOur optical positioning camera utilizes near-infrared light to detect and track reflective markers on surgical instruments, achieving unparalleled positioning accuracy up to 0.08mm (RMS) with sampling frequencies ranging from 96Hz to 300Hz. This level of precision is essential for complex procedures in fields such as neurosurgery, orthopedics, and dental implant applications. As a leading solution among surgical robotics companies, our system ensures precise guidance for robotic surgical procedures.Seamless Integration with Control SystemsDesigned for seamless compatibility with various control systems, the camera features multiple data interfaces, including USB 3.0, Ethernet, and WiFi, with maximum data transfer rates up to 5.0 Gbps. This versatility guarantees smooth integration into existing surgical workflows, enhancing overall performance in the surgical robotics market. As such, it is ideal for integration with surgical robot manufacturers seeking advanced surgical navigation systems.Customized Solutions for Diverse Surgical ApplicationsRecognizing the diverse requirements of different surgical procedures, AIMOOE offers tailored solutions to meet specific clinical needs. Our optical positioning camera supports both passive and active markers, tracking up to 50 tools and 200 markers simultaneously, making it adaptable for various surgical scenarios. This adaptability is a significant advantage for robotic surgical companies and those looking to enhance the performance of surgical robots.Promoting Sustainability in Surgical PracticesCommitted to environmental responsibility, AIMOOE designs its optical positioning systems with sustainability in mind. By utilizing energy-efficient components and durable materials, our products minimize environmental impact while maintaining high performance. This aligns with the growing demand for eco-conscious practices within the surgical robotics market.
Product Advantages
High Precision Tracking: Achieves positioning accuracy up to 0.08mm (RMS) with sampling frequencies up to 300Hz, ensuring precise instrument navigation for robotic surgical procedures.
Versatile Integration: Supports USB 3.0, Ethernet, and WiFi interfaces for flexible integration with various control systems, enhancing overall surgical navigation systems performance.
Customizable Solutions: Accommodates both passive and active markers, tracking multiple tools and markers to suit diverse surgical needs, making it a vital tool for top surgical robotics companies.
Sustainable Design: Incorporates energy-efficient components and durable materials, aligning with eco-friendly surgical practices in the surgical robot market.
